Solid Brass Tile Trim
Brass Square-Edge Tile Trim
NIUYUAN brass square-edge tile trim finishes straight, exposed tile edges with a flat, squared metal line in H59 solid brass. Where aluminum or PVC would read as a utility edge, solid brass makes the termination part of the design: a warm, weighty reveal that suits premium bathrooms, hotel interiors, retail spaces and feature walls. The square face keeps the modern, rectified-tile look crisp, while the solid profile protects the tile edge behind it. MOQ starts from 200 pieces, with available samples usually arranged within 7 days and custom samples in 7–10 days.
Request a Quote · View Specifications
Product Overview
A Squared Brass Reveal for Straight Tile Terminations
A square-edge profile does one job cleanly: it closes a straight exposed edge — a wall termination, a backsplash end, an outside corner, a floor border — with a flat face that sits level with the tile surface. In solid brass that face is also the decoration, which is why this profile is specified where the edge stays visible and is judged up close. The full brass family context is set out on our solid brass tile trim page, and the cross-material view of this profile family is on the square edge tile trim page.
Common heights are 6, 8, 10, 12 and 12.5 mm, matched to tile thickness; common lengths are 2.44, 2.5, 2.7 and 3.0 m; and profile thickness is usually 1.5–5.0 mm, with custom thickness reviewed by profile shape, drawing or sample. One characteristic is worth stating up front: brass is a living finish. Its surface appearance can shift over time depending on the finish type, moisture exposure, cleaning and handling, so the finish sample you approve — its tone, brushing direction and protective film — is the reference bulk production is checked against, not a brochure color.
Flat Squared Reveal
A straight, level face that keeps rectified and large-format tile edges looking deliberate and modern.
H59 Solid Brass
Solid brass through the profile — the visible line is the material itself, not a coating over a base metal.
Four Brass Finishes
Brushed, polished, satin and antique directions, each confirmed against an approved finish sample.
Low-Volume Premium Line
An MOQ from 200 pieces makes a design-led brass line practical for distributors without container-scale commitment per SKU.
Specifications
Brass Square-Edge Tile Trim Specifications
Reference specifications for our brass square-edge tile trim are listed below. Final height, thickness, finish and packing are confirmed according to tile thickness, profile shape, finish reference, quantity and production schedule before quotation.
| Item | Common Options |
|---|---|
| Material | H59 solid brass for standard and custom tile trim profiles |
| Profile | Square edge profile for straight tile terminations, exposed edges and outside corners; custom brass profiles by drawing or sample |
| Height | 6 / 8 / 10 / 12 / 12.5 mm common heights, or custom height by tile thickness and order requirements |
| Length | 2.44 / 2.5 / 2.7 / 3.0 m common lengths, or custom length according to order requirements |
| Thickness | Usually 1.5–5.0 mm, or custom thickness by profile shape, drawing or sample |
| Surface Finish | Brushed brass, polished brass, satin brass, antique brass, or custom finish by approved sample reference |
| MOQ | From 200 pcs; final MOQ varies by profile type, finish, size, packaging and customization requirements |
| Sampling | Available profile samples usually within 7 days; custom samples usually 7–10 days, depending on profile shape, drawing confirmation, finish and sample complexity |
| Bulk Lead Time | Usually 20–30 working days, depending on quantity, finish, packaging, profile complexity and production schedule |
| Packaging | Protective film, sleeve, standard export carton, label, barcode, shipping mark, private label packaging, or customized packaging by order |
| Customization | Custom profile shape, height, thickness, length, surface finish, punching, label, carton and OEM / ODM requirements by order |
| Application | Premium bathroom and kitchen edges, hotel and retail interiors, feature wall lines, decorative floor borders, backsplash endings |
RFQ Tip: MOQ, sample arrangement and bulk lead time are confirmed according to profile type, finish, size, quantity, packaging and production schedule. Drawings, photos, tile thickness, finish references or samples help us quote faster and more accurately.
Finish Options
Finish Options for Brass Square-Edge Tile Trim
On a square face, the finish is read across a flat plane, so tone and brushing direction show more than they do on a curved profile. Brushing direction, line consistency, color tone, gloss level and protective film should all be settled on the approved sample before bulk production, and repeat orders are checked against that same reference.

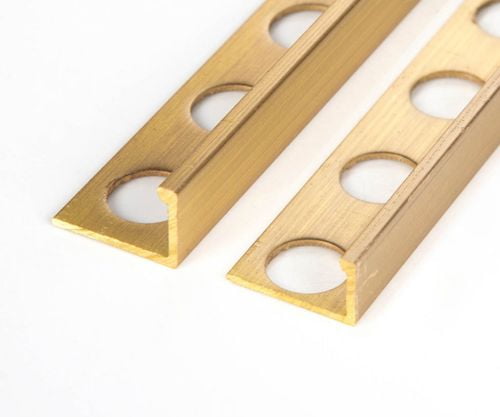

Brushed Brass
A directional satin-like texture that softens reflections on visible edges — the volume choice for bathrooms, niches and commercial interiors.
Polished Brass
A bright, reflective finish for feature lines and high-visibility details where the edge is meant to be noticed.
Satin Brass
A controlled, low-sheen surface between brushed and polished, for projects that want warmth without glare.
Antique Brass
An aged tone direction for classic and heritage-style interiors, confirmed by sample because antique tones vary most between batches.
Applications

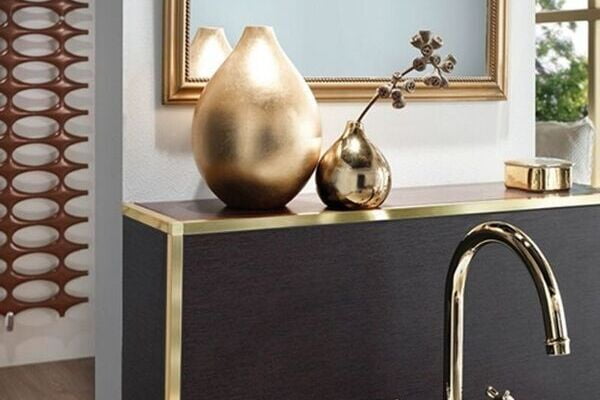

Where Brass Square-Edge Tile Trim Is Used
- Bathroom niches and wall edges: framing niches, mirror surrounds and visible wall terminations with a warm squared line.
- Kitchen backsplash endings: closing backsplash ends, countertop tile edges and side returns where the termination stays in view.
- Hotel and retail interiors: premium edge details in lobbies, bathrooms and display areas where the finish is part of the specification.
- Feature wall lines: straight decorative lines and panel borders on tiled feature walls.
- Decorative floor borders: border lines and inlay-style separations between finished floor areas.
FAQ
Brass Square-Edge Tile Trim FAQ
What is brass square-edge tile trim used for?
It finishes straight exposed tile edges, outside corners, backsplash endings and decorative borders with a flat, squared face. In solid brass it is chosen where the edge is a visible design detail — premium bathrooms, hotels, retail spaces and feature walls — rather than a purely utility termination.
Is it solid brass or brass-colored?
Solid. This profile is made from H59 solid brass, so the warm tone runs through the material. That is different from a brass- or gold-colored finish, which can be applied over aluminum or stainless steel; if solid brass is what the project specifies, confirm the material grade before quotation.
Which finishes are available, and will the color change?
Brushed, polished, satin and antique brass are the common directions, with custom finishes reviewed against an approved sample. Brass appearance can change over time with finish type, moisture, cleaning and handling; confirming the finish sample, surface protection and care expectations before bulk production keeps that change within what the buyer accepted.
What sizes are available?
Common heights are 6, 8, 10, 12 and 12.5 mm; common lengths are 2.44, 2.5, 2.7 and 3.0 m; and profile thickness is usually 1.5–5.0 mm. Custom heights, lengths and thicknesses can be reviewed by drawing, sample, profile shape and order requirements.
What visible face and anchoring leg widths are available?
Those dimensions are confirmed by square edge profile type against your drawing or sample rather than taken from a fixed list: send the face width you need with the tile thickness, height and thickness, and we will review it before quoting.
What is the MOQ and lead time?
MOQ starts from 200 pieces for solid brass tile trim, with the final figure varying by profile, finish, size, packaging and customization. Available profile samples are usually arranged within 7 days and custom samples in 7–10 days; bulk production usually runs 20–30 working days.
What to Include in Your RFQ
- Profile type (square edge) and tile thickness / required trim height
- Thickness, length and visible face requirement, or a drawing / sample
- Finish reference — an approved sample, photo or finish name (brushed, polished, satin, antique)
- Quantity per finish and packaging requirements (including private label, if any)
- Drawings, photos or samples, if available
For non-standard square profiles, drawings and samples can also be reviewed through our custom tile trim options before quotation.
