Stainless Steel Tile Trim
Stainless Steel Square-Edge Tile Trim
NIUYUAN stainless steel square-edge tile trim finishes exposed tile edges with a straight, flat metal reveal in 304 or 316 stainless steel. Where a round-edge profile softens the line, the square edge keeps it crisp and architectural — the finish modern wall layouts, large-format tiles and commercial interiors ask for — while the metal face caps the raw tile edge against the knocks that chip ceramic and porcelain. It is the durable square-edge option for bathrooms, showers, kitchens and project work that needs a clean linear detail in a harder-wearing material. MOQ starts from 500 pieces, with standard samples usually arranged within 7 days.
Product Overview
A Crisp, Straight Edge Line in 304 or 316 Stainless Steel
A square-edge profile finishes the exposed side of a tile with a flat, squared reveal instead of a curve. In stainless steel that geometry comes with the strongest edge protection in this profile family: the visible face is metal, not glaze, so outside corners and exposed ends keep their line under regular contact. Grade selection comes before size selection — 304 covers most indoor bathrooms, kitchens, walls and standard commercial interiors, while 316 is the option for wet, coastal and more demanding environments where stronger corrosion resistance is required.
Common heights are 6, 8, 10 and 12 mm, matched to tile thickness; common lengths are 2.44, 2.5, 2.7 and 3.0 m; and common thickness options are 0.6, 0.8 and 1.0 mm. One boundary is worth stating up front: stainless steel is more corrosion-resistant than many standard metals, but it should not be described as completely rust-proof in every environment. Actual performance depends on grade, moisture exposure, cleaning chemicals, installation conditions and maintenance — which is why the grade is confirmed per position, not assumed.
Straight Square Reveal
The flat visible face gives exposed edges and outside corners a crisp, squared line that suits modern tile layouts and linear project detailing.
304 or 316 Grade Choice
304 for standard indoor work; 316 for showers, wet areas, coastal positions and commercial kitchens where chlorides and constant wetting are in play.
Metal Edge Protection
The profile caps the vulnerable tile edge, shielding it from chipping at outside corners, countertop ends and exposed terminations.
Finishes for Wet and Visible Areas
Brushed, polished / mirror, satin / hairline, sandblasted and PVD color options let the flat face match the rest of the stainless program.
Specifications
Stainless Steel Square-Edge Tile Trim Specifications
Reference specifications for our stainless steel square-edge tile trim are listed below. Final grade, height, thickness, finish and packing are confirmed according to tile thickness, profile drawing, quantity and production schedule before quotation.
| Item | Common Options |
|---|---|
| Material Grade | 304 stainless steel / 316 stainless steel |
| Profile | Square-edge profile, straight flat visible face |
| Height | 6 / 8 / 10 / 12 mm common heights, or custom size according to tile thickness, drawing or sample |
| Length | 2.44 / 2.5 / 2.7 / 3.0 m common lengths, or custom length by order |
| Thickness | 0.6 / 0.8 / 1.0 mm common options, or custom thickness by order |
| Surface Finish | Brushed, satin / hairline, polished / mirror, sandblasted, PVD color options, or custom finish by sample reference |
| Color | Natural stainless, plus PVD directions such as gold, black, rose gold, champagne and bronze, reviewed by sample |
| MOQ | From 500 pcs; final MOQ varies by profile type, finish, packaging and customization |
| Sampling | Standard samples usually within 7 days for available profile options; custom samples usually 7–10 days |
| Bulk Lead Time | Usually 20–30 working days, depending on quantity, finish, packaging and production schedule |
| Packaging | Protective film, standard export carton, label, barcode, reinforced packing, or customized packaging |
| Application | Exposed wall edges, outside corners, shower walls and niches, backsplash endings, countertop edges, floor borders, commercial interiors |
RFQ Tip: MOQ, sample arrangement and bulk lead time are confirmed according to grade, profile size, finish, quantity, packaging and production schedule. Drawings, photos, tile thickness, dimensions, samples or finish references help us quote faster and more accurately.

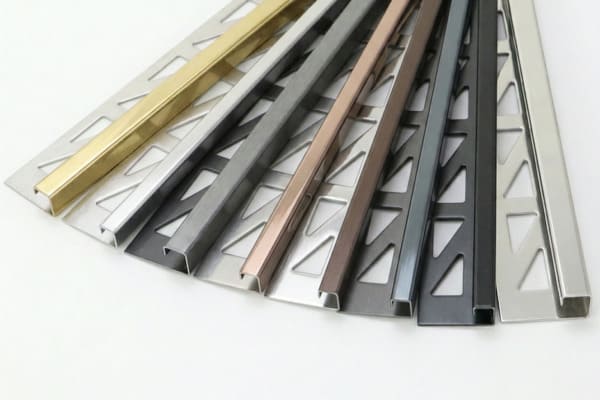

Finish Options
Finish and Color Options for Stainless Steel Square-Edge Tile Trim
Because the square profile shows a wide flat face, the finish decides how visible the edge line is — and on a project order, how consistently that line repeats across every length. Final availability is confirmed by grade, profile shape, order quantity and approved samples before bulk production, and repeat orders are checked against your sealed sample.
Brushed
A directional texture with reduced glare — the default direction for kitchens, bathrooms and commercial interiors where the edge should sit quietly against the tile.
Polished / Mirror
A bright, reflective surface for decorative edges, feature lines and premium interiors where the squared profile is meant to be seen.
Satin / Hairline and Sandblasted
Softer, lower-reflection surfaces for projects that want the stainless look and durability without a mirror shine.
PVD Colors
Gold, black, rose gold, champagne and bronze directions can be reviewed by sample, color reference, material grade and order quantity.
Applications
Where Stainless Steel Square-Edge Tile Trim Is Used
- Exposed wall edges: straight, durable finishing for exposed vertical and horizontal tile edges in bathrooms, kitchens and living areas.
- Outside wall corners: protecting tiled external corners where two planes meet and the corner takes regular contact.
- Shower walls and niches: finishing wet-area edges and niche borders with a clean squared line, with the grade confirmed for the exposure.
- Kitchen backsplashes and countertop edges: closing backsplash endings and framing tiled countertop ends with a flat metal face.
- Commercial interiors: hotels, retail spaces, offices and public areas that need durable corner protection and consistent visible details across many rooms.
FAQ
Stainless Steel Square-Edge Tile Trim FAQ
What is stainless steel square-edge tile trim used for?
It finishes exposed tile edges and outside corners with a straight, flat visible face, protecting the tile edge from chipping while giving the detail a clean modern line. It is used on exposed wall edges, outside corners, shower walls, backsplash endings, countertop edges, floor borders and commercial interiors.
Should I choose 304 or 316 for a square-edge profile?
304 is the practical grade for most indoor bathrooms, kitchens, walls and commercial interiors. Choose 316 for wet, coastal or more demanding environments where stronger corrosion resistance is required. Stainless steel is more corrosion-resistant than many standard metals, but it should not be described as completely rust-proof in every environment — grade, exposure, cleaning chemicals and maintenance all play a part.
How do I choose the right height?
The trim height should usually match the tile thickness, with room for adhesive and installation tolerance. Send your tile thickness — or drawings, photos or a sample — so the height can be confirmed before quotation.
What visible face and anchoring leg sizes are available?
Those dimensions are confirmed profile by profile against your drawing or sample rather than taken from a fixed list: send the visible face and anchoring leg dimensions you need, and we will review them with the grade, height, thickness and finish before quoting. Custom sizes can be reviewed on the same basis.
What finishes are available?
Brushed, polished / mirror, satin / hairline, sandblasted / matte, and PVD color options such as gold, black, rose gold, champagne and bronze. Final availability is confirmed against samples, grade, quantity and profile shape.
What is the MOQ and lead time?
MOQ starts from 500 pieces for stainless steel tile trim, with the final figure varying by profile, finish, packaging and customization. Standard samples are usually ready within 7 days for available profile options and custom samples in 7–10 days; bulk production usually runs 20–30 working days.
What to Include in Your RFQ
- Profile type (square edge) and material grade (304 or 316)
- Tile thickness and required trim height
- Visible face and anchoring leg dimensions, or a drawing / sample
- Thickness, length, finish and PVD color direction, if any
- Quantity and packaging requirements
- Drawings, photos or samples, if available
