304 vs 316 vs 316L Stainless Steel Tile Trim: How to Choose (2026)

Post by Mason Lee
Table of Contents

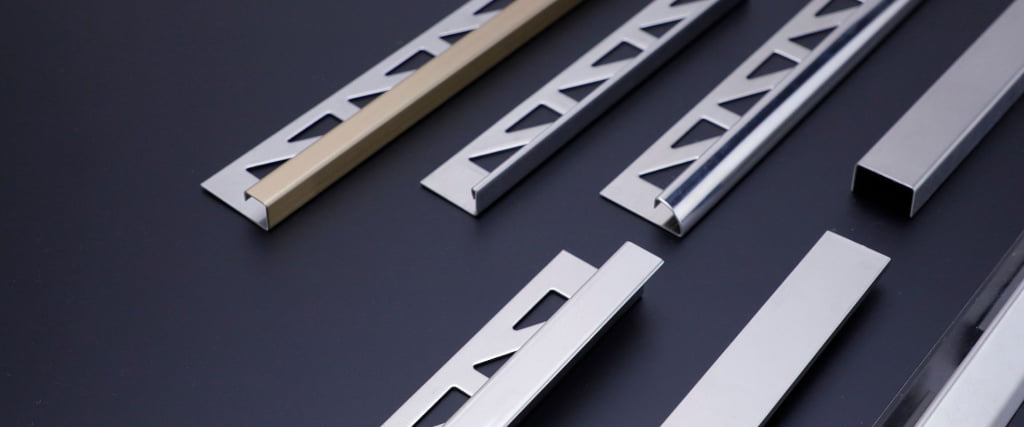

304 vs 316 vs 316L stainless steel tile trim profiles

For stainless steel tile trim, pick 304 for indoor bathrooms, kitchens, walls, and standard commercial interiors. Pick 316 for showers with constant wetting, pool surrounds, commercial kitchens, hospitals and food plants, and coastal or outdoor projects. 316L matters when a project specification names it or welding is involved — for typical bent and grooved trim profiles, 316 already covers the corrosion requirement.

The One-Element Difference: Composition

304 and 316 are both austenitic stainless steels. The practical difference is one element: molybdenum. Typical AISI composition ranges:

Grade Chromium Nickel Molybdenum Carbon (max)
304 ~18% ~8% — 0.08%
304L ~18% ~8% — 0.03%
316 ~16% ~10% 2–3% 0.08%
316L ~16% ~10% 2–3% 0.03%

304 is often called “18/8” from its chromium/nickel ratio. The “L” grades are low-carbon versions of the same alloy — identical except for carbon content. Always confirm the actual grade against mill certificates at order, not just the product name.

Why Molybdenum Matters for Tile Trim

Molybdenum improves resistance to pitting and crevice corrosion — the localized attack that starts in tiny crevices and under deposits. Its biggest payoff is in chloride environments, and tiled spaces have more chloride sources than buyers expect:

  • Pool chlorine — trim around swimming pools lives in chlorinated splash zones.
  • Salt air and saltwater — coastal projects and seaside hotels.
  • Cleaning chemicals — harsh cleaners left sitting on the surface attack even stainless over time.

This is why 316 is sold as “marine grade” in the tile trim trade — UK retailers list 316 straight-edge trims explicitly under marine-grade SKUs. For swimming pool environments specifically, stainless industry guidance (ACO Technical Bulletin TB201001) recommends 316 for areas in contact with chlorinated water, and 316 with electropolishing for saltwater pools, while 304 remains adequate for areas well away from pool water such as change rooms.

Putting a Number on It: PREN

Buyers comparing mill certificates can rank the grades with a single index: the Pitting Resistance Equivalent Number (PREN). The British Stainless Steel Association (BSSA) gives the most commonly used formula as:

PREN = %Cr + 3.3 × %Mo + 16 × %N

Chromium, molybdenum and nitrogen are the three elements that drive pitting resistance, and the weightings show why the one-element difference matters: molybdenum counts 3.3 times its percentage, so the 2–3% addition in 316 lifts the whole index. Calculated across the specified composition ranges in BSSA’s table, the two families separate cleanly:

Grade PREN (calculated range)
304 17.5–20.8
316 / 316L 23.1–28.5

Two things to read from those numbers. First, 316L scores the same as 316 — the low-carbon variant changes weld behaviour, not pitting resistance, which is why the “L” rarely decides a trim order. Second, the Australian Stainless Steel Development Association (ASSDA) uses the same index as a selection guide for coastal exposure: a PRE of about 18 is typically adequate away from marine influences, about 24 is required for marine atmospheres, and severe marine atmospheres may require about 34. On that scale, 304 sits right at the inland line and 316 clears the marine-atmosphere line, while neither reaches the severe-marine line — which is why the harshest saltwater splash zones still call for added measures such as electropolishing, rather than a grade change alone.

Use PREN the way BSSA intends it: as a way to rank and compare grades, not to predict whether a specific grade will succeed in a specific application. Surface finish, crevices and maintenance all shift the real outcome — starting with the brown surface film buyers most often meet first.

316L: What the “L” Buys You — and When Trim Buyers Can Skip It

The low-carbon “L” grades were developed to prevent intergranular corrosion (weld decay) — chromium carbides precipitating at grain boundaries when the steel sits at welding temperatures. That matters for welded pipework and vessels.

Here’s the honest part for trim buyers: tile trim profiles are typically formed by grooving and bending sheet, not by welding. So the weld-related advantage of 316L rarely decides anything for a trim profile. Our assessment:

  • Specify 316L when the project specification names it, when the assembly involves welding, or when the environment demands the maximum-spec option (e.g., saltwater pool edge in constant contact with water).
  • 316 is enough for virtually all other demanding trim applications — coastal, pool surround, commercial kitchen, hospital.

Note: NIUYUAN’s stainless program lists 304 and 316. If your project specification mandates 316L, confirm availability and mill certification when you send the RFQ.

Which Grade for Which Project

Scenario Recommended grade Why
Residential bathroom walls 304 Mild, intermittent moisture; 304 is the economical fit
Kitchen backsplash 304 Occasional splashes and wiping; no chloride load
Shower walls and niches (constant wetting) 316 Daily water contact plus soaps and cleaners
Swimming pool surrounds 316 (316L if specified) Chlorinated splash zone; saltwater pools are harsher still
Commercial kitchens 316 Grease, steam, aggressive cleaning agents
Hospitals and food processing 316 Hygiene requirements plus chemical disinfectants
Coastal outdoor / seaside hotels 316 Salt air and airborne chlorides
Change rooms away from pool water 304 No direct pool-water contact; 304 is adequate

When in doubt between the two, match the grade to the harshest exposure the trim will see over its service life — not the average room condition. For the broader material choice (aluminum vs stainless vs brass vs PVC), see our best materials guide.

Tea Staining: The Brown Film That Is Not Rust-Through

The first corrosion problem most buyers actually see is not a pit — it is tea staining, a brown discolouration of the surface. ASSDA defines it as discolouration of the surface by corrosion, and is clear about its severity: it is a cosmetic issue that does not affect the structural integrity or the lifetime of the material. On a trim profile, the metal is not failing — but the visible face is exactly what the client judges, so it has to be managed like a real defect.

Tea staining occurs when local conditions are too aggressive for that grade of stainless steel in its installed condition. The main drivers ASSDA identifies:

  • Salt deposits that stay wet. Sea salt remains wet until a very low relative humidity, so a salted surface stays wet — and corroding — far longer than a merely damp one; high humidity then dissolves the deposits into a corrosive film.
  • Distance and shelter. It occurs most commonly within about five kilometres of the surf and worsens closer to the marine source. Sheltered, rain-shadowed faces are a particular problem: salt accumulates there without ever being washed off.
  • Surface roughness. Deep grooves and folds trap salts, which become concentrated as the surface dries. ASSDA puts the critical surface roughness for cut or abraded surfaces at approximately 0.5 µm Ra: surfaces smoother than that are much less susceptible, and a mirror polish is the most resistant mechanically finished surface.
  • A grade below the exposure. Each grade has a limit to the salt concentration it can comfortably resist. ASSDA’s grade-selection guidance is direct: grade 316, or a grade with equivalent corrosion resistance, should be selected as a minimum within five kilometres of the surf, while the lower-alloyed grades such as 304 will probably become tea stained — or suffer more severe corrosion — in a marine environment.

For trim, the practical reading is this: a 304 profile in a coastal bathroom or a sheltered seaside balcony is being asked to work past its limit, and the brown film is the early warning. Read it as a specification error, not a material defect. Our pool and outdoor tile trim guide works through the wet-area specification in more depth.

Cost: What to Expect

316 trim typically costs more than 304 — you are paying for the molybdenum and the extra nickel. Two buying notes:

  • Think in total cost, not unit price. Replacing corroded 304 trim in a pool surround or coastal facade costs far more than the grade premium — labor, tile damage, and downtime dwarf the material difference.
  • Lock the grade at order. 304 and 316 look identical once finished. Confirm the grade on the order confirmation and ask for mill certification on 316 orders, so what ships is what was specified.

Can You Tell 304 from 316 With a Magnet?

No — the magnet test is not reliable. Both grades are austenitic and nominally non-magnetic, but cold working (which is exactly how trim profiles are formed) can make 304 slightly magnetic. The only reliable identification is chemical analysis or a mill certificate. If grade authenticity matters for your project, specify the certificate in the RFQ rather than testing finished pieces with a magnet.

Care Tips for Both Grades

  • Rinse off pool water, salt spray, and cleaner residue — don’t let chlorides sit on the surface.
  • Avoid abrasive pads on brushed or mirror finishes; they trap contaminants in the scratches.
  • 316 still needs maintenance. “Marine grade” means higher resistance, not immunity.

Washing Off the Salt: Maintenance That Prevents Staining

Stainless steel is a low maintenance material, but it is not maintenance free — and that difference decides how trim looks in year three. The washing regime ASSDA recommends is simple:

  • Wash light and regularly. Wash with soap or mild detergent and warm water, rinse with clean cold water, and wipe dry for the best appearance. As a working guide, wash the stainless steel when the adjacent windows need washing; exposed faces may get enough natural rain washing, but sheltered faces never do.
  • Never use abrasive cleaners, or cleaners containing chlorides or bleach. ASSDA states both will damage the surface they are meant to clean.
  • Keep hydrochloric acid off stainless entirely. ASSDA is explicit: hydrochloric acid, sometimes used to clean cement or mortar residues, must not be used on stainless steel — it will stain the surface and usually start more serious corrosion. On a tiling site that means acid-based grout and cement removers are handled around fitted trim, never over it.

If tea staining has already appeared, ASSDA notes that simple mechanical polishing alone is unlikely to remove it and prevent it returning; chemical cleaning and passivation is usually the most effective treatment. For project work, the cheaper path is to write the washing regime into the handover documents, so the building’s cleaning contractor inherits the rules along with the building.

What to Put in Your RFQ

Grade disputes cause most stainless trim problems. Make the RFQ unambiguous:

  • Grade: 304 or 316 (316L only if the project spec mandates it — confirm availability first)
  • Profile and size: profile type, height matched to tile thickness, material thickness (0.6 / 0.8 / 1.0 mm), length or custom lengths
  • Finish: brushed, mirror, satin, or PVD color with direction and sample reference
  • Environment: describe the installation — pool, coastal, kitchen, hospital — so the grade choice can be sanity-checked
  • Quantity, packaging, and target delivery plus drawings or a sample for custom profiles
  • Mill certification required on 316/316L orders

FAQ

What’s the real difference between 304 and 316 stainless steel?
Composition: 316 adds 2–3% molybdenum (plus slightly more nickel) to the basic 304 formula. That one addition gives 316 markedly better resistance to pitting and crevice corrosion in chloride environments — pool chlorine, salt air, and harsh cleaners.

When is 316 worth the extra cost for tile trim?
When the trim faces constant wetting, chlorides, or aggressive cleaning: showers, pool surrounds, commercial kitchens, hospitals and food plants, and coastal or outdoor installations. For dry indoor walls and backsplashes, 304 is the economical choice.

Do I need 316L, or is 316 enough for tile trim?
316 is enough for nearly all trim applications. 316L’s advantage is weld-related (low carbon prevents weld decay), and trim profiles are normally bent rather than welded. Specify 316L when the project specification requires it or welding is involved.

Can I tell 304 from 316 with a magnet?
No. Cold forming can make 304 slightly magnetic, so a magnet can’t reliably distinguish the grades. Rely on mill certificates specified at order instead.

Will 304 stainless steel trim rust around a swimming pool?
It can develop pitting and tea-staining in chlorinated splash zones over time — 304 is not rated for that exposure. Pool surrounds and pool-adjacent areas should use 316 (or 316L where specified).
